springboot

IOC

Key Concepts of IoC

1. Dependency Injection (DI):

   • A common implementation of IoC where dependencies are “injected” into a class rather than the class creating them itself.
   • Dependencies can be injected via:
     • Constructor injection
     • Setter injection
     • Interface injection

2. Control Delegation:

   • Instead of the program controlling the flow of execution, the control is handed over to a framework or container.

3. Benefits:

   • Improved modularity and separation of concerns.
   • Easier testing (mocking dependencies).
   • Reduced boilerplate code.
   • Better scalability and maintainability.

---

Important

• you cannot create beans inside default package

---

Excalidraw Data

Text Elements

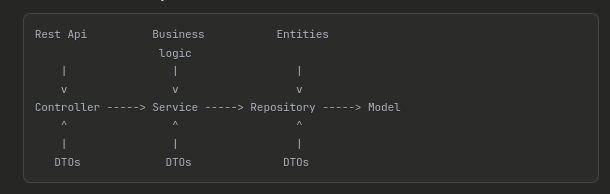

Springboot

Model

Controller

service

Repository

Rest Api

Entities

Business logic

Embedded Files

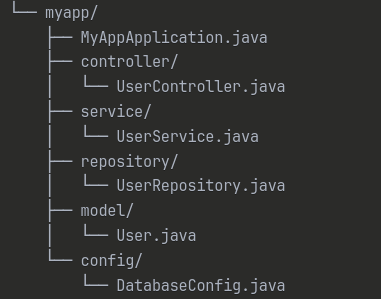

3f2196fcae99e83679e49125a79eb962f751fc5a: Pasted Image 20250707113201_201.png

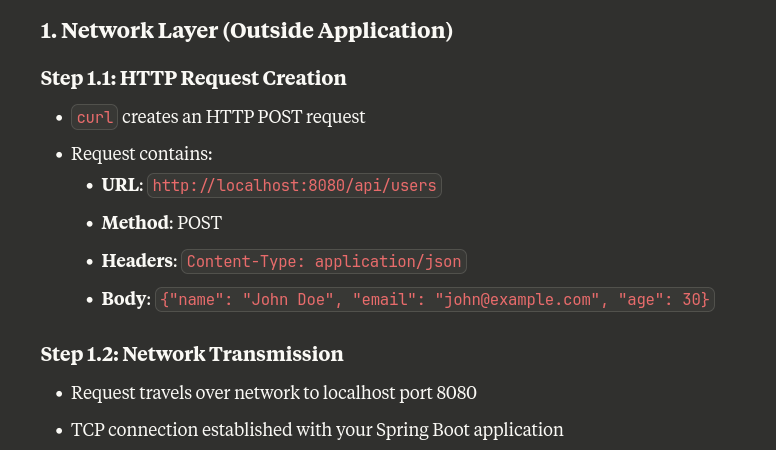

79fb85b54eda1bacc614c3ac5768e50e09b4047d: Pasted Image 20250707122105_424.png

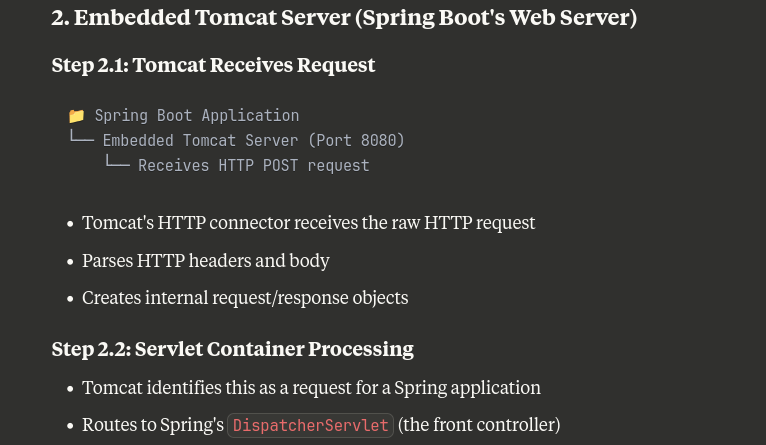

d2ceb0fd9d079ec5ca83ab24588590fb15d2d8cf: Pasted Image 20250707122116_519.png

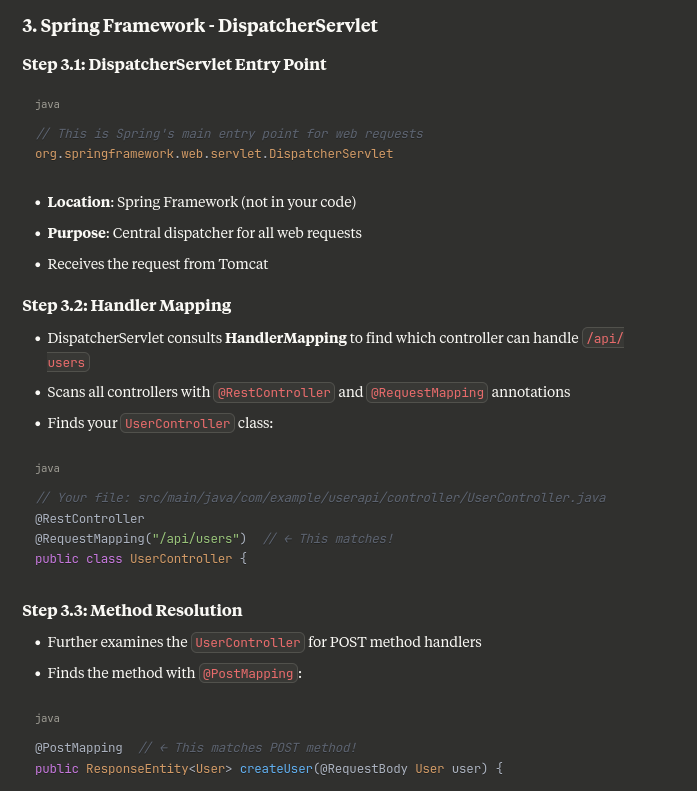

77b8a27d4433b6b206943c4a391ee55f79c09510: Pasted Image 20250707122137_193.png

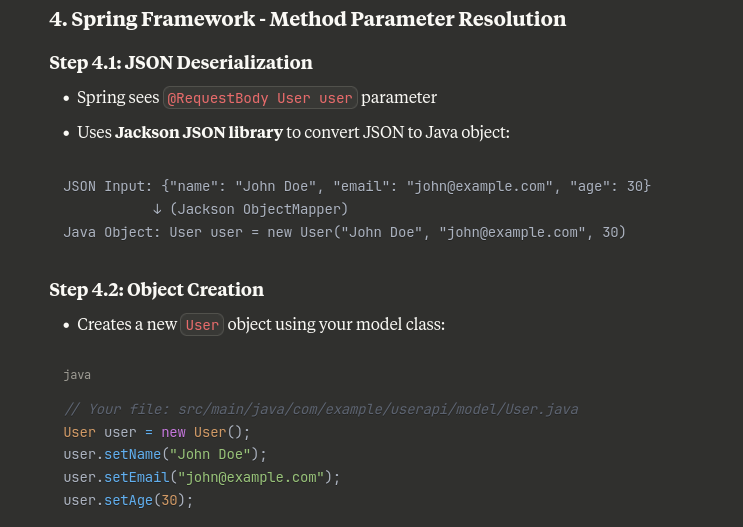

da8b61022835931a8f0884b59a43a66cb3635e98: Pasted Image 20250707122149_607.png

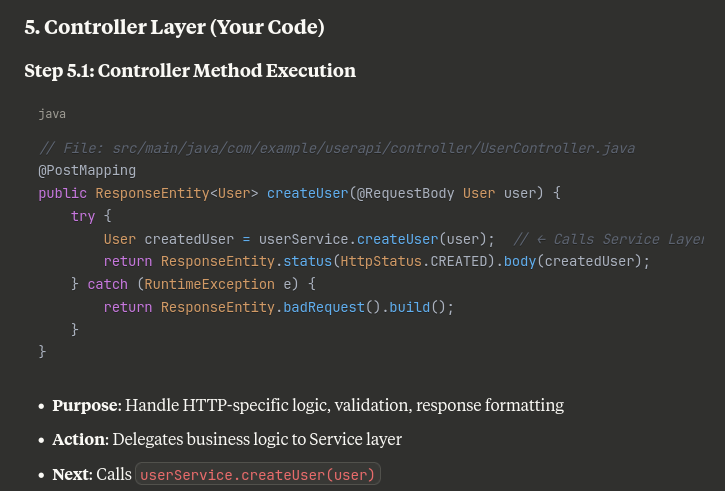

6d9dd7c63d7ade81fadac09da160cc5d350b2429: Pasted Image 20250707122201_173.png

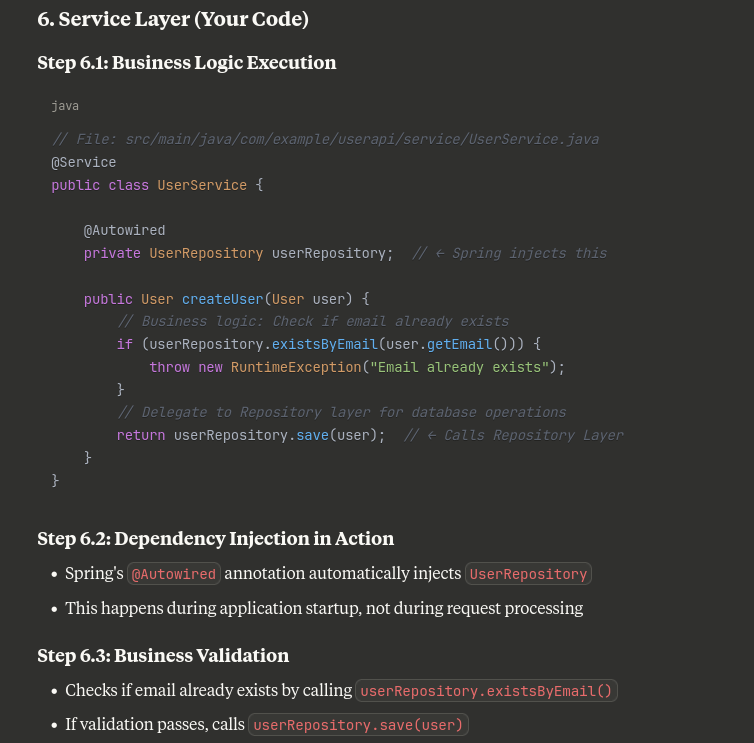

562f1833007a3db8316b5ce6da2f8c8228e55ef9: Pasted Image 20250707122213_531.png

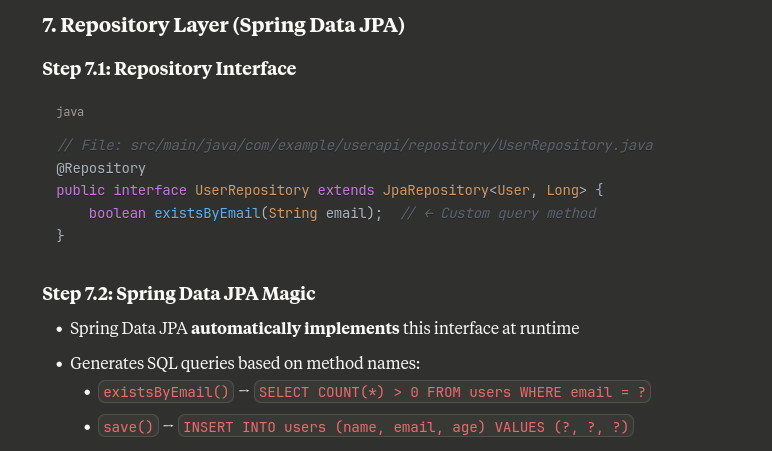

f00dce821c44ef46d37cdd975c2b25a738840435: Pasted Image 20250707122230_596.png

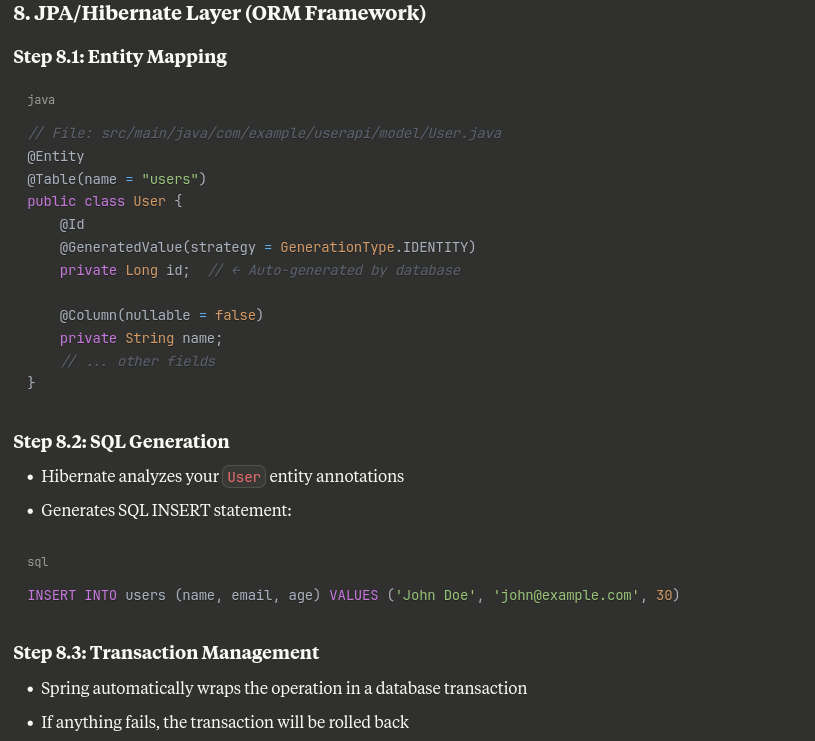

aa9d393ed07555217a9bb1c85b3a5524b8790533: Pasted Image 20250707122242_823.png

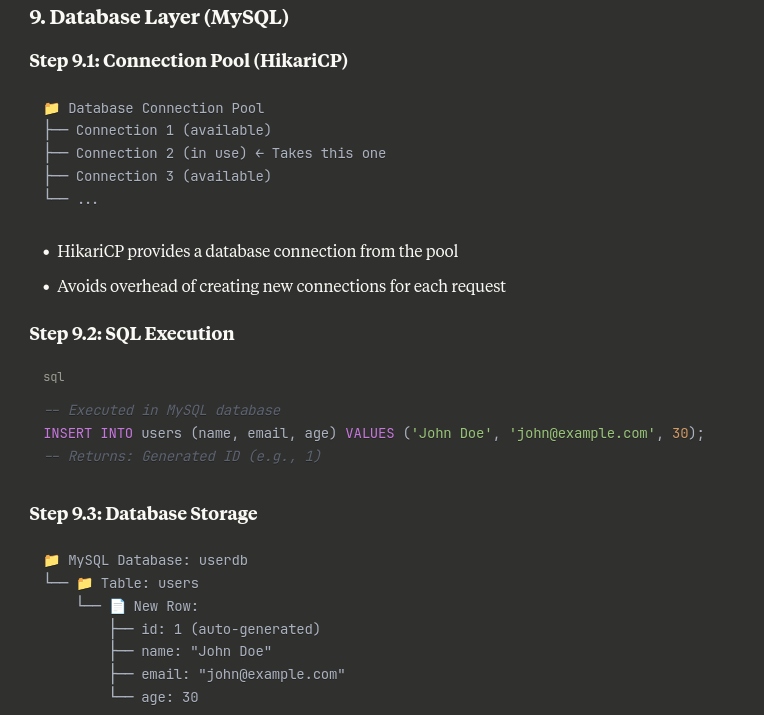

322cf834a27d96f691893a1baa7215c7276f28e1: Pasted Image 20250707122254_414.png

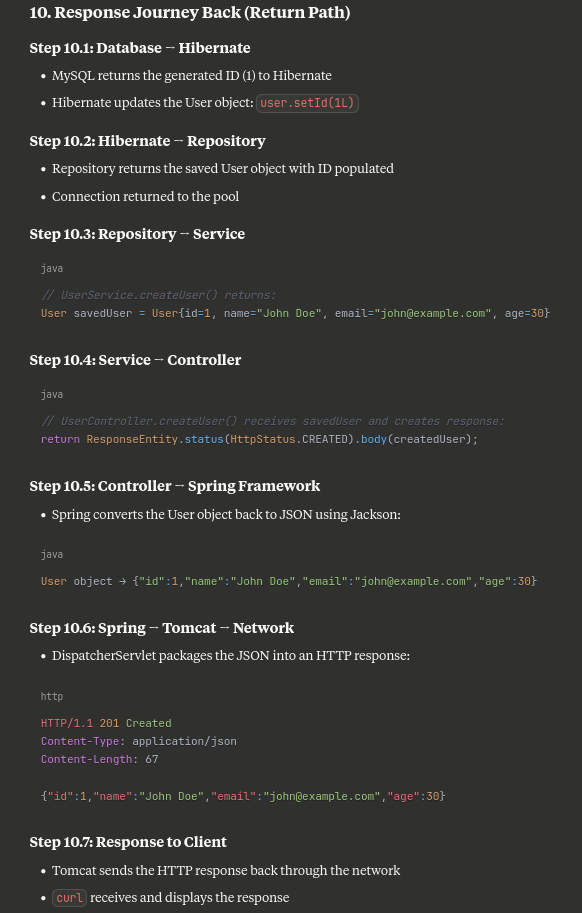

ddb0f0a38da3706ed3fdcef5391a06a5c5aced9a: Pasted Image 20250707122347_747.png

f8154c89b3196126f6660d5c2fcacc0a4cea8b2a: Pasted Image 20250707175336_171.png
