Container Storage Interface (CSI)

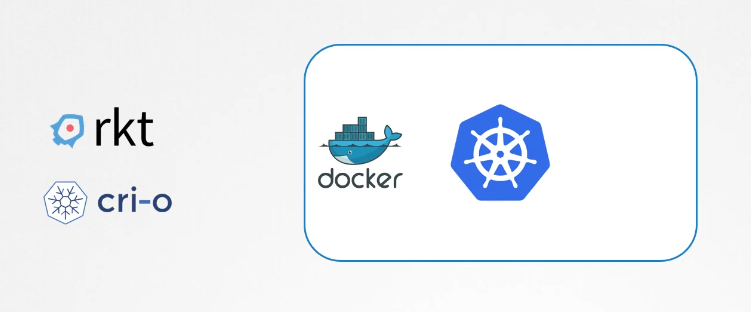

In the past, Kubernetes used Docker alone

as the container runtime engine,

and all the code to work with Docker

was embedded within the Kubernetes source code.

With other container run times coming in,

such as RKT and CRI-O, it was important to open up

and extend support to work

with different container runtimes,

and not be dependent on the Kubernetes source code. And that’s how Container Runtime Interface came to be.

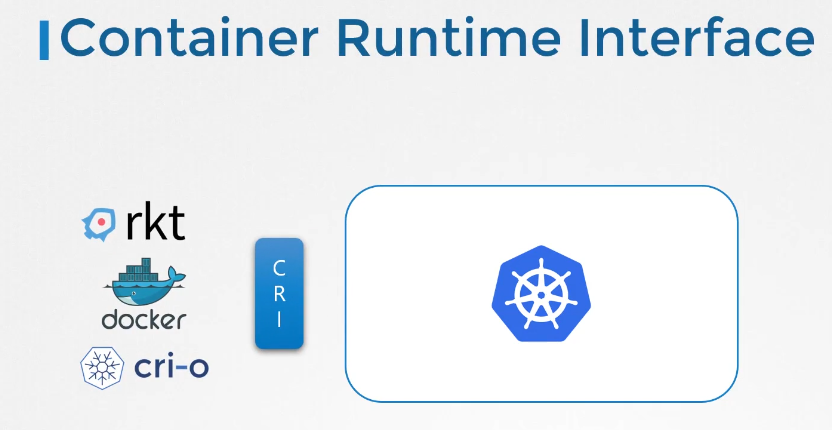

The Container Runtime Interface is a standard

that defines how an orchestration solution like Kubernetes

would communicate with container runtimes like Docker.

So in the future,

if any new Container Runtime Interface is developed,

they can simply follow the CRI standards,

and that new container runtime would work with Kubernetes

without really having to work

with the Kubernetes team of developers,

or touch the Kubernetes source code.

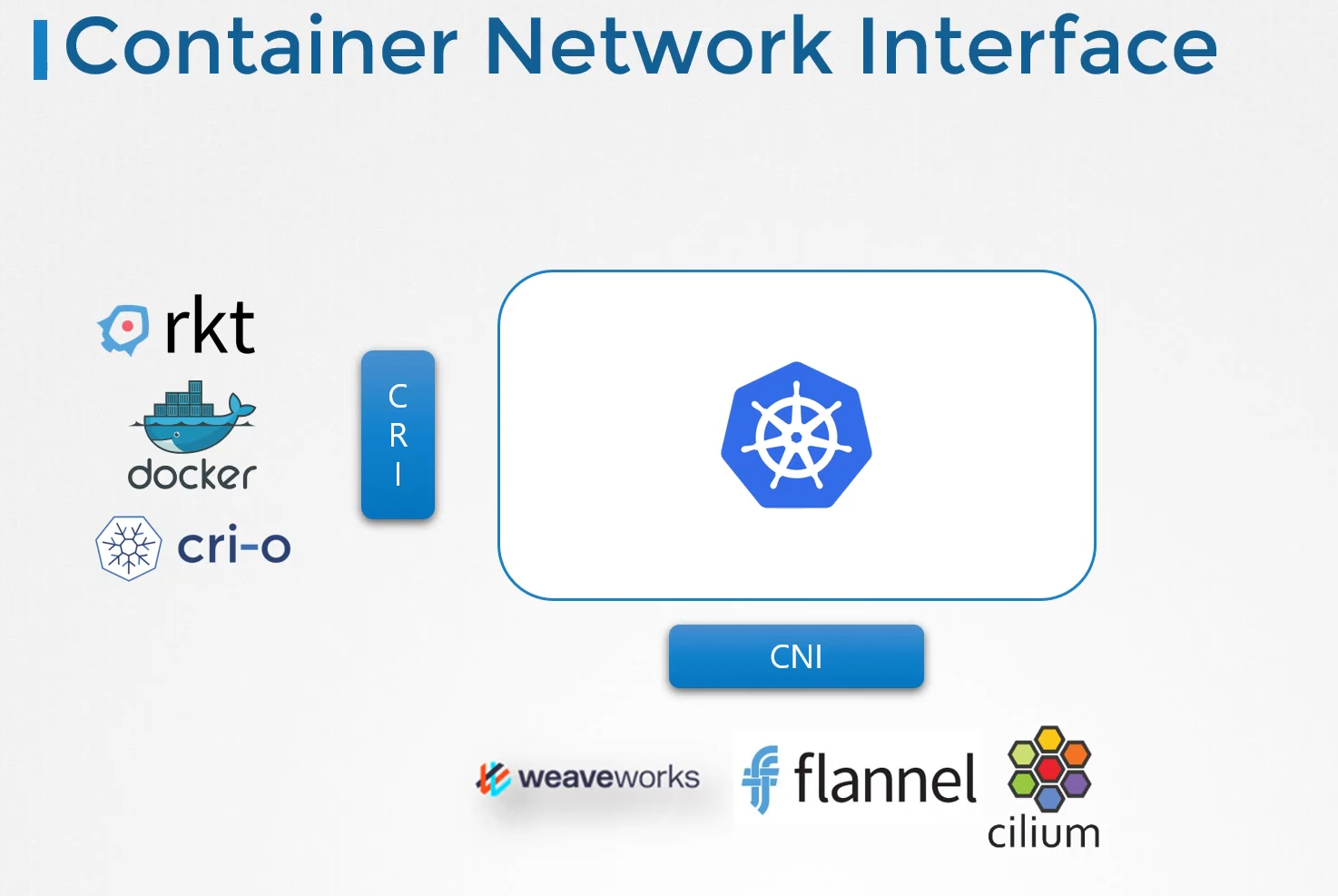

Similarly, as we saw in the networking lectures,

to extend support for different networking solutions, the Container Networking Interface was introduced.

Now, any new networking vendors

could simply develop their plugin

based on the CNI standards,

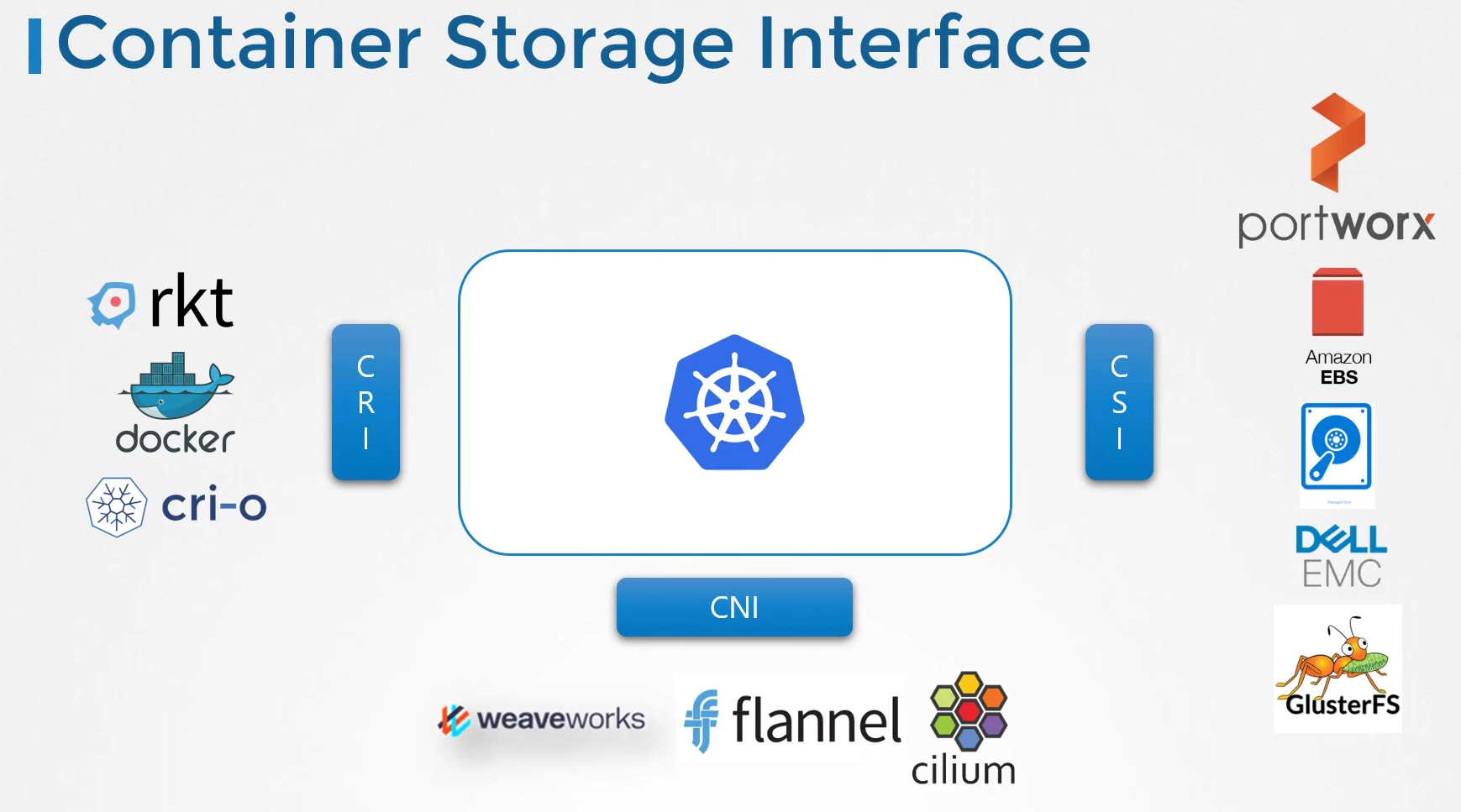

and make their solution work with Kubernetes. And as you can guess, the Container Storage Interface

was developed to support multiple storage solutions.

With CSI, you can now write your own drivers

for your own storage to work with Kubernetes.

Portworx, Amazon EBS, Azure Disk, Dell EMC Isilon,

PowerMax, Unity, XtremIO, NetApp, Nutanix,

HPE, Hitachi, Pure Storage.

Everyone’s got their own CSI drivers. Note that CSI is not a Kubernetes specific standard.

It is meant to be a universal standard, and if implemented,

allows any container orchestration tool

to work with any storage vendor with a supported plugin.

Currently, Kubernetes, Cloud Foundry, and Mesos

are on board with CSI.

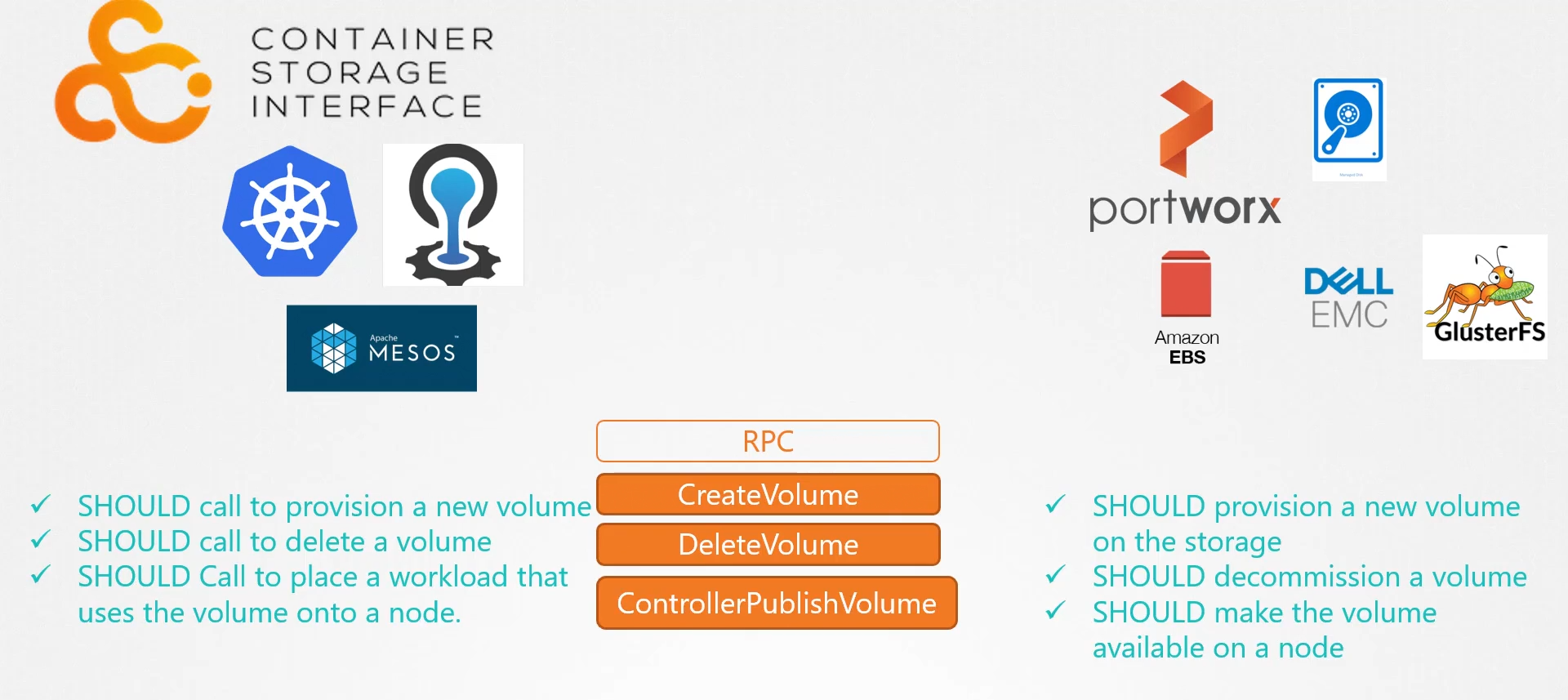

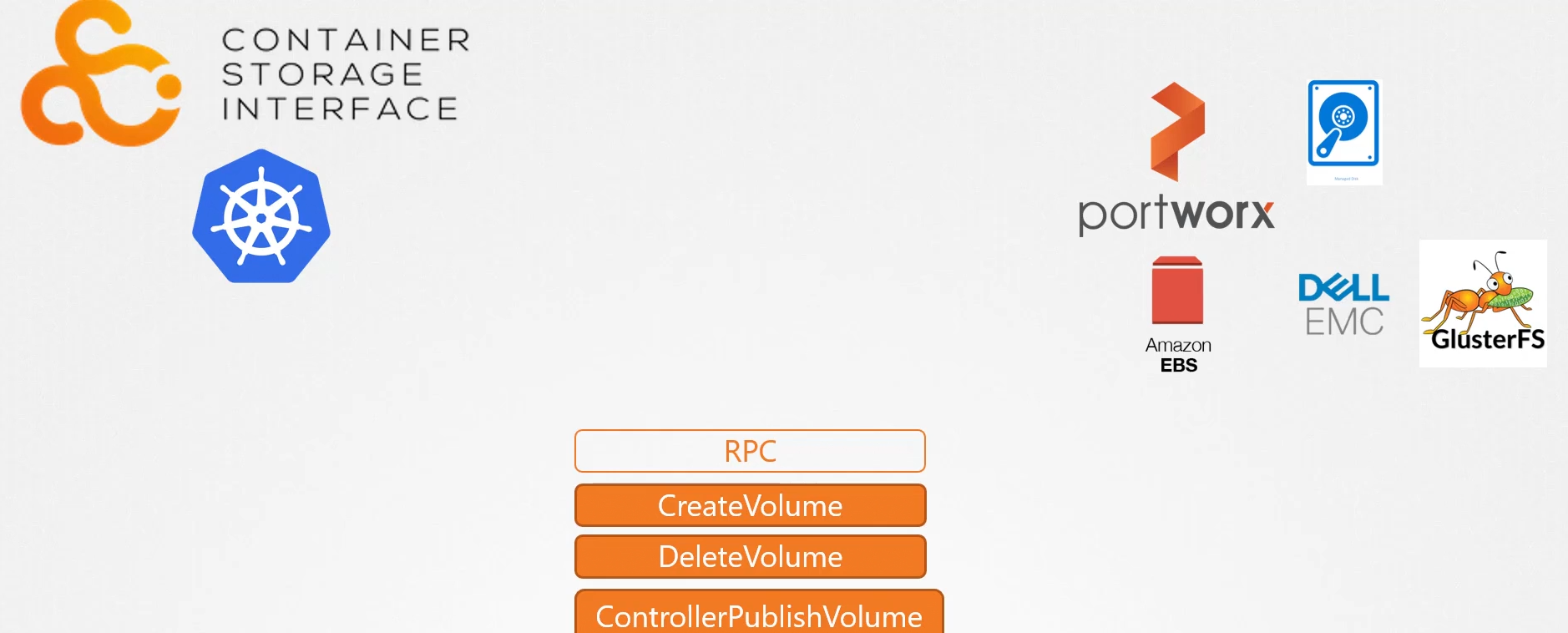

So here’s what the CSI kind of looks like. It defines a set of RPCs, or remote procedure calls,

that will be called by the container orchestrator,

and these must be implemented by the storage drivers.

For example, CSI says that when a pod is created

and requires a volume, the container orchestrator,

in this case Kubernetes, should call the create volume RPC

and pass a set of details such as the volume name.

The storage driver should implement this RPC

and handle that request and provision

a new volume on the storage array,

and return the results of the operation.

Similarly, container orchestrator should call

the delete volume RPC when a volume is to be deleted,

and the storage driver should implement the code

to decommission the volume from the array

when that call is made.

And the specification details exactly

what parameters should be sent by the caller,

what should be received by the solution,

and what error codes should be exchanged.

If you’re interested, you can view all these details

in the CSI specification on GitHub at this URL.

So that’s about it for now

about Container Storage Interface.

I’ll see you in the next lecture.
